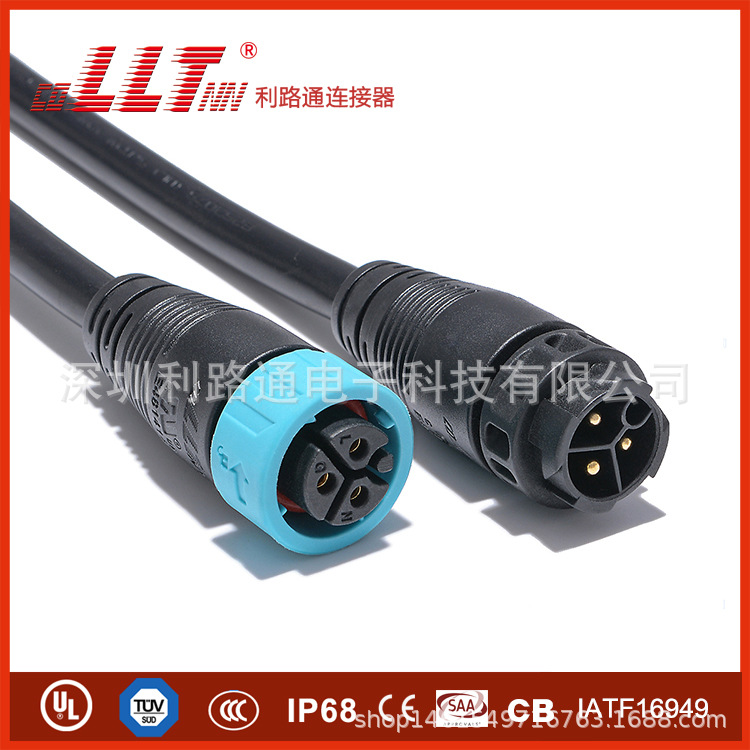

LLT M19 push lock male front panel mount waterproof connector

LLT M19 push lock male front panel mount waterproof connector - Image 2

LLT M19 push lock male front panel mount waterproof connector - Image 3

LLT M19 push lock male front panel mount waterproof connector - Image 4

LLT M19 push lock male front panel mount waterproof connector - Image 5

LLT M19 push lock male front panel mount waterproof connector - Image 6

LLT M19 push lock male front panel mount waterproof connector

💰 CLICK TO EMAIL – BULK ORDER DISCOUNTS!

📧 Click above to send email for bulk pricing negotiation

💬 Live Chat (Office Hours: 8AM-10PM GMT+8)

M19 Parametric Table

Cores	Voltage	Current	Wire Gauge
2P	250V	20A	≤2.5mm²
3P	250V	20A	≤2.5mm²
4P	250V	20A	≤1.5mm²
5P	250V	15A	≤1.0mm²
6P	250V	15A	≤0.75mm²
7P	100V	5A	≤0.75mm²
8P	100V	5A	≤0.5mm²
9P	100V	5A	≤0.3mm²
10P	100V	5A	≤0.3mm²
12P	100V	5A	≤0.2mm²
14P	100V	5A	≤0.2mm²
18P	100V	5A	≤0.2mm²

Specs: IP67 | 3000 Cycles | -40℃~+105℃ | Cable: 6-10mm

*Prices per set, shipping not included

Category: M19 waterproof connector

Description
Reviews (0)

LLT M19 Push Lock Connector Series Cover

LLT™ M19 Push Lock Wire Connector Series

Precision Selection Consultation: conn-llt.cn/selector.html

M19 Push Lock · Revolutionary Wire Connection Technology

M19 connector push lock self-locking structure detail

Click. Connected. Done.

Our M19 push lock wire connector delivers instant connection with zero tools required. The patented spring-loaded mechanism provides satisfying tactile feedback—that audible "click" confirms secure engagement every time. These electrical connectors transform wire installation from tedious to effortless.

⚡ 90% faster installation than traditional electrical connectors

🔒 IP68 waterproof, vibration-resistant wire connector

🎯 Field-proven reliability across 50+ industries
