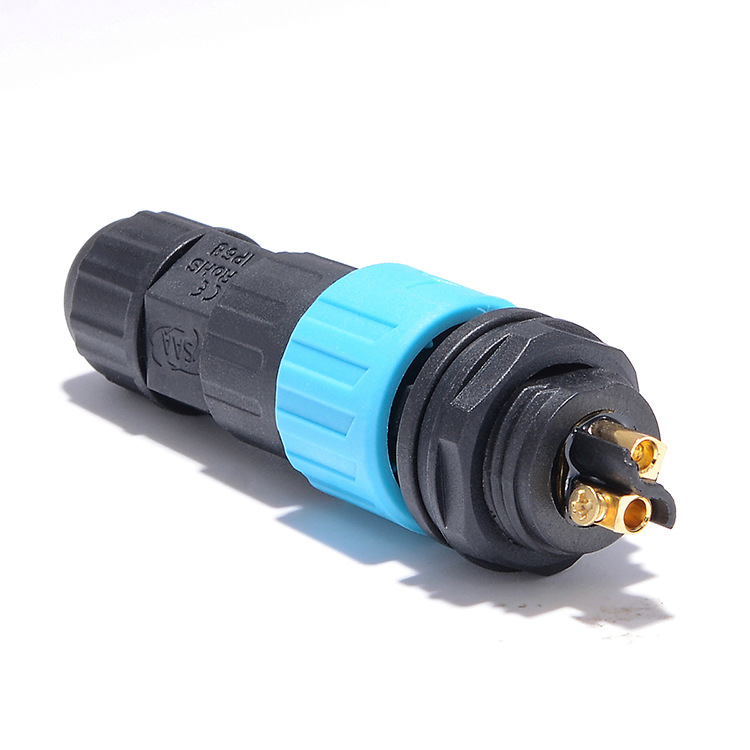

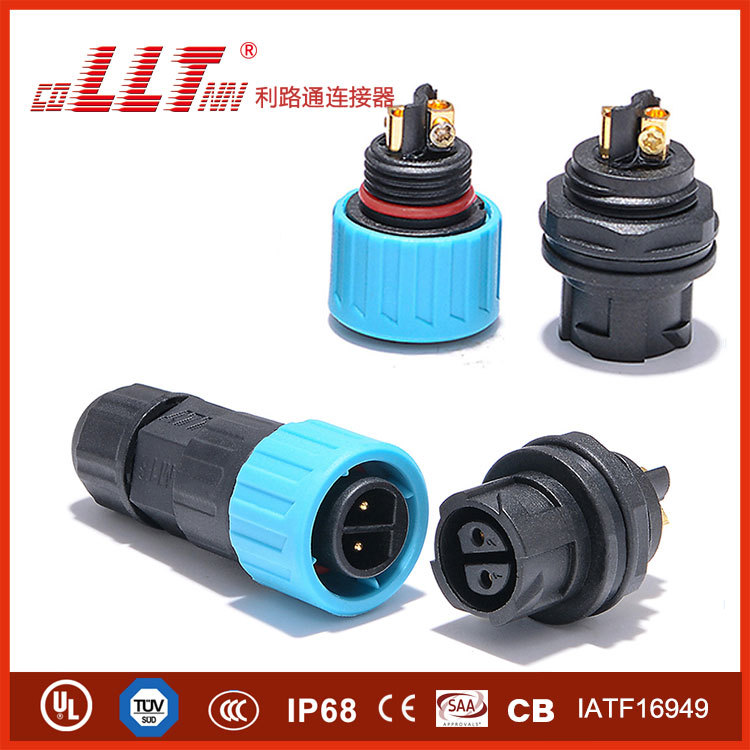

LLT M16 push lock male rear panel mount waterproof connector

M12 Parametric Table

Cores Voltage Current Wire Gauge
1P 110V 10A ≤1.0mm²
2P 110V 10A ≤1.0mm²
3P 110V 10A ≤0.75mm²
4P 110V 10A ≤0.5mm²
5P 60V 5A ≤0.3mm²
6P 60V 5A ≤0.2mm²
7P 60V 5A ≤0.2mm²
8P 60V 5A ≤0.2mm²
2+2P 110V 10A ≤1.0mm²
2+3P 110V 10A ≤0.75mm²
2+4P 110V 10A ≤0.5mm²

Specifications: IP67 Protection | 3000 Mating Cycles | -40℃~+105℃ | Cable Range: 3.5-7.5mm

*Prices per set, shipping not included

Category:

LLT CONNECTOR™ M16 Self-Locking Rear Panel Waterproof Connector

UL认证 TUV认证 ISO9001 CE认证

Premium M16 Connector - Self-Locking Rear Panel Design

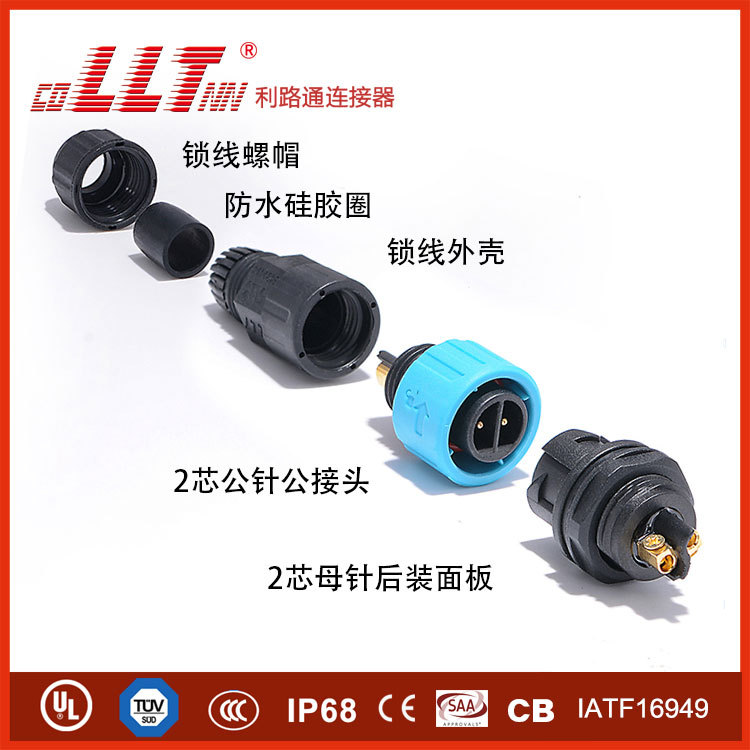

M16 connector self-locking rear panel exploded structure

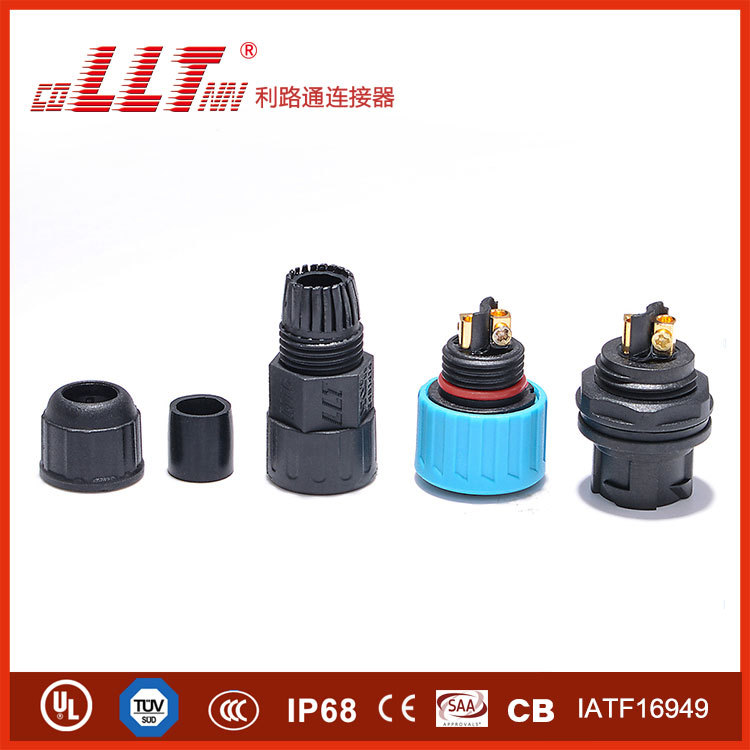

M16 connector self-locking rear panel with plug assembly M16 connector rear panel structure breakdown

Ingenious Design · Unmatched Reliability

Our premium M16 connector sets the industry standard for wire connector types with its meticulously engineered self-locking rear panel. The innovative push-lock system delivers that perfect tactile "click" feedback, ensuring secure connections for all your multi-pin connector needs.

The exquisite structural design showcases superior craftsmanship - ergonomic, durable, and precision-engineered for effortless handling. Ideal for cable connector applications including lighting powercord solutions, led connector systems, and industrial implementations where reliability is non-negotiable.

⚡ Premium M16 Design: IP68 waterproof, 24K gold contacts, precision-machined
🔧 Self-Locking Excellence: Innovative push-lock mechanism with perfect tactile feedback
🛡️ Structural Superiority: Ingenious rear panel design for simplified installation and durability

Complete M16 Connector Series for Professional Lighting Powercord Solutions

M16 connector rear panel illustration

Our comprehensive M16 connector lineup features 5 configurations: Male/Female Plugs, Front/Rear Panel Mount, and Flange Mount - all engineered with superior structural integrity for wire connector type applications and lighting powercord solutions.

M16 connector self-locking rear panel exploded structure M16 connector rear panel structure breakdown

LLT CONNECTOR™ - Industry Leader in Multi-Pin Connector Technology

150,000 m² Factory
5M+ Units Monthly
200+ Patents Innovation

Trusted by Huawei, Philips, BYD. Leading supplier of M16 connector technology for lighting powercord applications and premium cable connector solutions.
