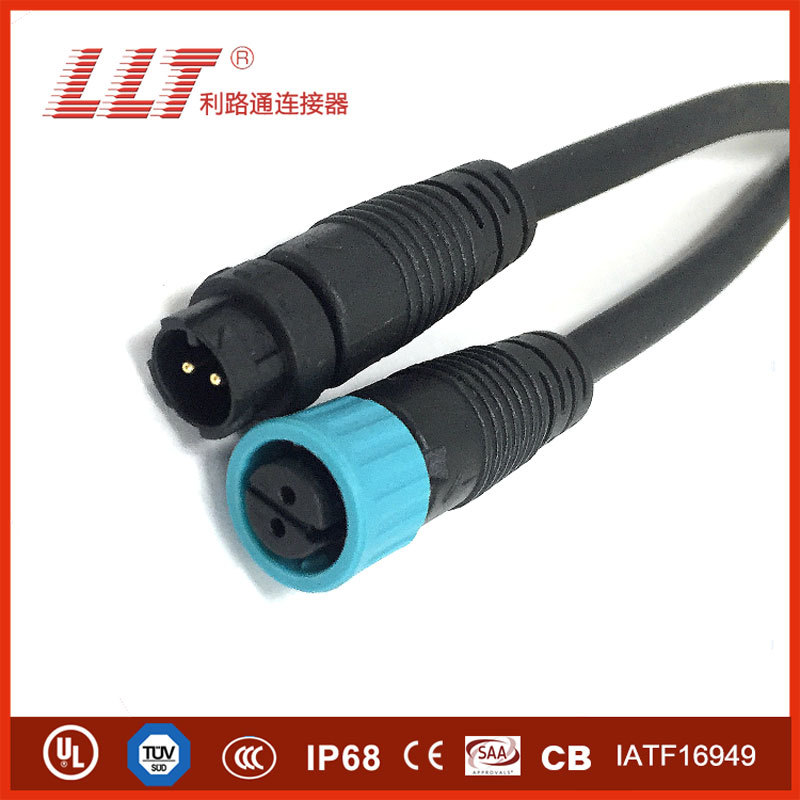

LLT M12 push lock waterproof cable molded connector

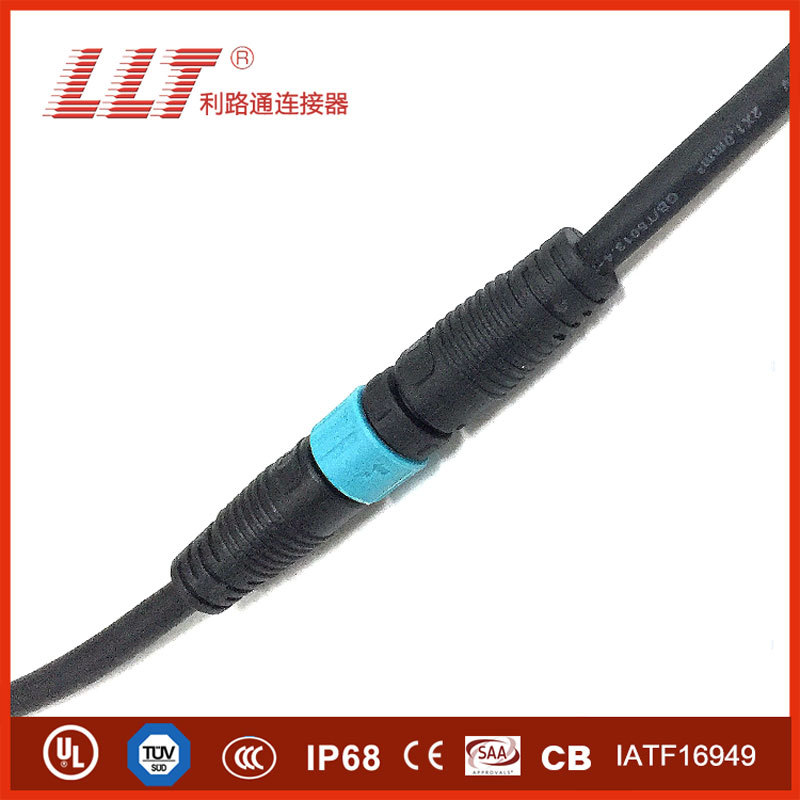

LLT M12 push lock waterproof cable molded connector - Image 2

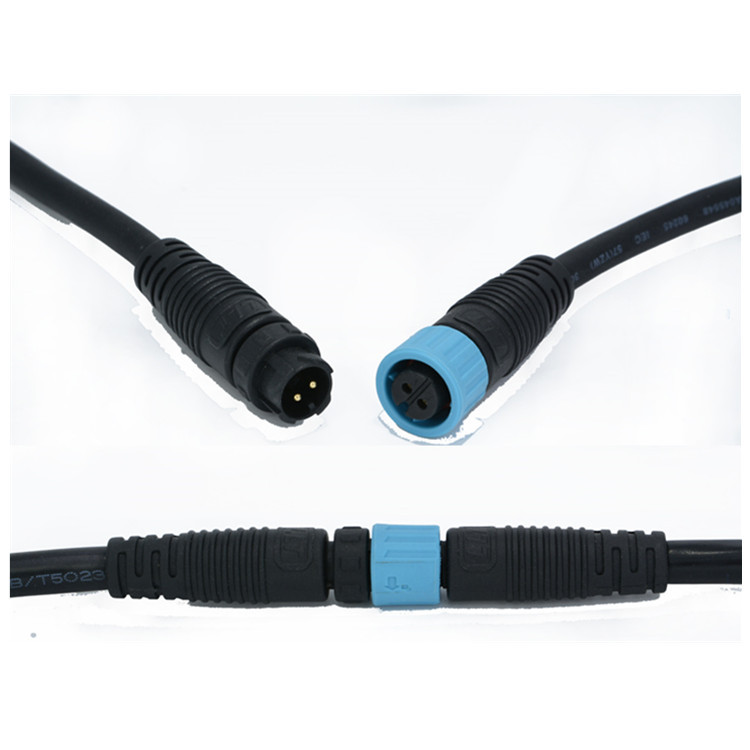

LLT M12 push lock waterproof cable molded connector - Image 3

LLT M12 push lock waterproof cable molded connector - Image 4

LLT M12 push lock waterproof cable molded connector - Image 5

LLT M12 push lock waterproof cable molded connector - Image 6

LLT M12 push lock waterproof cable molded connector - Image 7

LLT M12 push lock waterproof cable molded connector

CLICK TO EMAIL – BULK ORDER DISCOUNTS!

Click above to send email for bulk pricing negotiation

Live Chat (Office Hours: 8AM-10PM GMT+8)

M12 Parametric Table

Cores	Voltage	Current	Wire Gauge
1P	110V	10A	≤1.0mm²
2P	110V	10A	≤1.0mm²
3P	110V	10A	≤0.75mm²
4P	110V	10A	≤0.5mm²
5P	60V	5A	≤0.3mm²
6P	60V	5A	≤0.2mm²
7P	60V	5A	≤0.2mm²
8P	60V	5A	≤0.2mm²
2+2P	110V	10A	≤1.0mm²
2+3P	110V	10A	≤0.75mm²
2+4P	110V	10A	≤0.5mm²

Specifications: IP67 Protection | 3000 Mating Cycles | -40℃~+105℃ | Cable Range: 3.5-7.5mm

*Prices per set, shipping not included

Category: M12 Waterproof Connector

Description
Reviews (0)

LLT M12 Push Lock Waterproof Connector Series with wire

Certified Quality

UL Listed TUV Certified ISO9001 CE Marked

Premium Push-Lock Injection Molded Connectors with Pre-Wired Cables

Advanced Self-Locking Push-Lock Technology

Our premium pre-wired connector solutions feature factory-assembled cables delivered directly to your door. Eliminate in-house wiring costs and quality concerns with our expertly soldered connections, ensuring exceptional performance at competitive prices. Each connector meets IP68 waterproof standards and delivers reliable power and signal transmission in demanding environments.

Push-Lock Self-Locking Series - Superior Quality

Premium M12 Connector with Pre-Wired Cable

Value-Added Service: We deliver factory pre-wired connectors ready for immediate installation. Eliminate in-house soldering costs while enjoying exceptional quality at competitive prices.

Cost-Effective Solution: Reduce labor and equipment costs

Quick Implementation: Ready-to-use right out of the package

✓

Quality Assurance: Every connection factory tested for reliability

Silky-Smooth Push-Lock Operation

Experience the smooth one-touch connection of our push-lock design. The self-locking mechanism provides a satisfying click with perfect resistance - not too tight, not too loose. Ergonomically designed for comfortable handling even with gloves, our connectors deliver exceptional user experience with every connection.

Secure Self-Locking: Spring-loaded mechanism prevents accidental disconnection

One-Touch Operation: Simple push-to-connect, pull-to-release design

Durable Performance: Maintains smooth operation after thousands of cycles

Push-Lock vs. Other Connection Types

Standard Threaded

Traditional industrial design

Secure Connection
Requires manual tightening

Time Consuming
Slower installation process

Tools Required
Often needs wrenches for tight seal

LLT™ Push Lock RECOMMENDED

Premium self-locking design with pre-wired options

Silky-Smooth Operation
Effortless push-to-connect mechanism

Factory Pre-Wired
Ready-to-use, cost-effective solution

90% Faster Installation
Tool-free, one-hand connection

Bayonet Lock

Twist-lock connection system

Twist Operation
Requires rotation to secure

Moderate Speed
Faster than threaded, slower than push-lock

No Pre-wired Option
Typically requires field wiring

LLT Connector · Landscape Lighting Applications

Shenzhen "Bay Area Light" Ferris Wheel

Singapore Gardens by the Bay

Full Spectrum LED Grow Light Systems

Las Vegas Sphere

Application Areas

Industrial Automation

Robotic systems, AGV chassis connections, servo motor encoders

Landscape Lighting

Outdoor LED fixtures, garden lighting, architectural illumination

Grow Lighting

Full spectrum LED grow lights, horticultural power distribution

Automotive

EV charging systems, sensor connections, control units

About LLT Connector

Professional Wire & Cable Equipment Manufacturer

Workforce 1000+ employees

Manufacturing HQ(Shenzhen): 12,000m²
Plant(Dongguan): 150,000m²

Capacity 5M+ units/month

Innovation High-Tech Enterprise
200+ patents

Leading Electrical Equipment & Supplies Provider

As a National High-Tech Enterprise, LLT Connector provides comprehensive electrical connection solutions through 200+ technical patents and vertically integrated manufacturing. Starting as a quality alternative to Amphenol connector products, we have developed innovative solutions including the globally launched L Series Lighting Connector, enhanced Push-lock design, and optimized Bayonet series connectors.

Our products serve landscape lighting (with 50%+ market share in grow lighting connectors), solar energy, and industrial automation applications worldwide. Custom solutions available for EV high-voltage platforms and fast charging waterproof connections.

Waterproof Connector Excellence

Specialized in M12 connector, circular connector, aviation plug, and waterproof plug manufacturing for electrical equipment & supplies industry. Compatible with major brands including Signify, Philips Lighting, uPowerTek, and Powerland.
