M19 thread lock male rear panel mount waterproof connector
M19 thread lock male rear panel mount waterproof connector - Image 2
M19 thread lock male rear panel mount waterproof connector - Image 3
M19 thread lock male rear panel mount waterproof connector - Image 4
M19 thread lock male rear panel mount waterproof connector - Image 5
M19 thread lock male rear panel mount waterproof connector - Image 6
M19 thread lock male rear panel mount waterproof connector - Image 7
M19 thread lock male rear panel mount waterproof connector - Image 8
M19 thread lock male rear panel mount waterproof connector - Image 9

M19 thread lock male rear panel mount waterproof connector

M19 Parametric Table

Cores Voltage Current Wire Gauge
2P 250V 20A ≤2.5mm²
3P 250V 20A ≤2.5mm²
4P 250V 20A ≤1.5mm²
5P 250V 15A ≤1.0mm²
6P 250V 15A ≤0.75mm²
7P 100V 5A ≤0.75mm²
8P 100V 5A ≤0.5mm²
9P 100V 5A ≤0.3mm²
10P 100V 5A ≤0.3mm²
12P 100V 5A ≤0.2mm²
14P 100V 5A ≤0.2mm²
18P 100V 5A ≤0.2mm²

Specs: IP67 | 3000 Cycles | -40℃~+105℃ | Cable: 6-10mm

*Prices per set, shipping not included

Category:

M19 Threaded Waterproof Connector Series - Industrial Grade IP67 Panel Mount Solutions

Thread Lock Male Rear Panel Mount Waterproof Connector | Circular Connectors | Automation & Robotics Applications

International Certifications

UL Listed Connector TUV Certified Waterproof Connector ISO9001 Quality Management IATF16949 Automotive Grade CE Certified Industrial Connector CCC Approved Connector
Need Custom Connector Solutions or Technical Support? Visit our online selector tool: conn-llt.cn/selector.html
Keywords: M19 connector, waterproof electrical connector, panel mount connector, circular connector, thread lock connector, IP67 connector

M19 Thread Lock Waterproof Connector - Technical Specifications & Performance

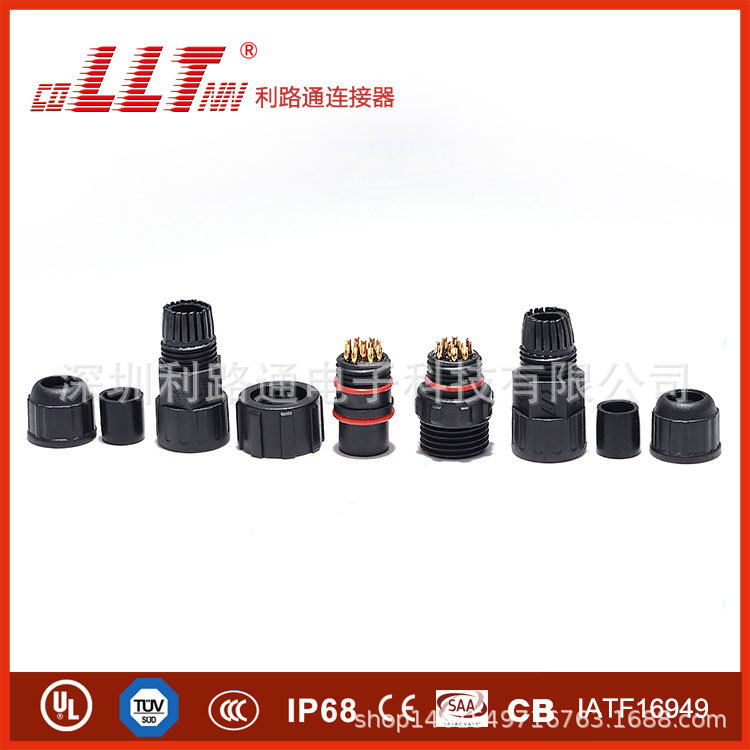

M19 Male Female Threaded Waterproof Connector Assembly Thread Lock Mechanism Industrial Connector Rear Panel Mount Circular Connector Design
