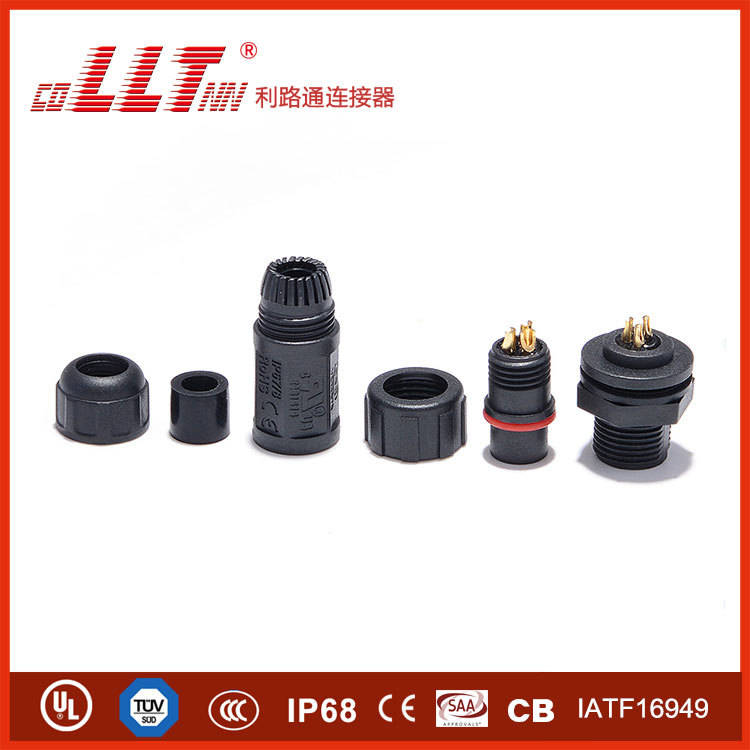

M12 male front panel mount waterproof connector
M12 male front panel mount waterproof connector - Image 2
M12 male front panel mount waterproof connector - Image 3
M12 male front panel mount waterproof connector - Image 4

M12 male front panel mount waterproof connector

M12 Parametric Table

Cores Voltage Current Wire Gauge
1P 110V 10A ≤1.0mm²
2P 110V 10A ≤1.0mm²
3P 110V 10A ≤0.75mm²
4P 110V 10A ≤0.5mm²
5P 60V 5A ≤0.3mm²
6P 60V 5A ≤0.2mm²
7P 60V 5A ≤0.2mm²
8P 60V 5A ≤0.2mm²
2+2P 110V 10A ≤1.0mm²
2+3P 110V 10A ≤0.75mm²
2+4P 110V 10A ≤0.5mm²

Specifications: IP67 Protection | 3000 Mating Cycles | -40℃~+105℃ | Cable Range: 3.5-7.5mm
