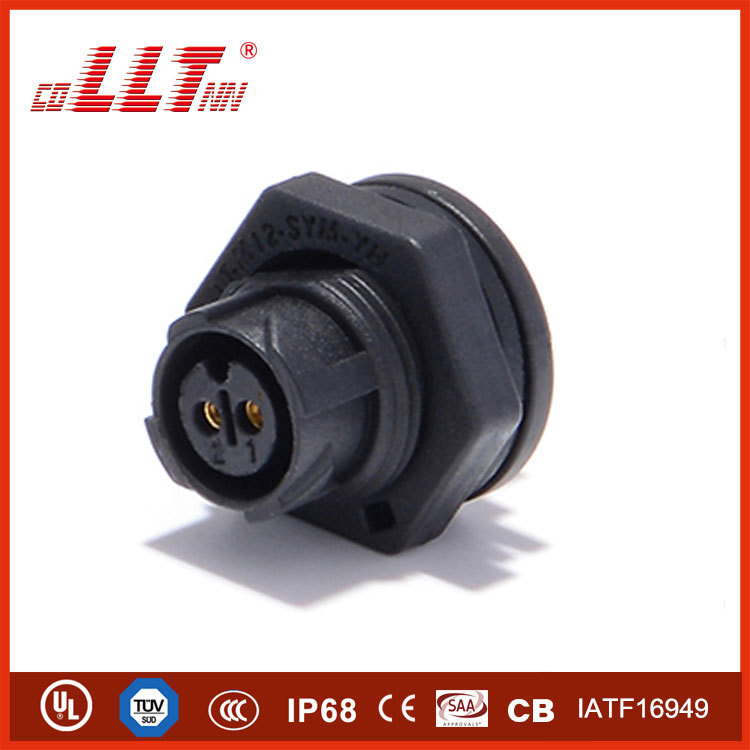

M12 female front panel waterproof connector

M12 female front panel waterproof connector - Image 2

M12 female front panel waterproof connector - Image 3

M12 female front panel waterproof connector

💰 CLICK TO EMAIL – BULK ORDER DISCOUNTS!

📧 Click above to send email for bulk pricing negotiation

💬 Live Chat (Office Hours: 8AM-10PM GMT+8)

M12 Parametric Table

Cores	Voltage	Current	Wire Gauge
1P	110V	10A	≤1.0mm²
2P	110V	10A	≤1.0mm²
3P	110V	10A	≤0.75mm²
4P	110V	10A	≤0.5mm²
5P	60V	5A	≤0.3mm²
6P	60V	5A	≤0.2mm²
7P	60V	5A	≤0.2mm²
8P	60V	5A	≤0.2mm²
2+2P	110V	10A	≤1.0mm²
2+3P	110V	10A	≤0.75mm²
2+4P	110V	10A	≤0.5mm²

Specifications: IP67 Protection | 3000 Mating Cycles | -40℃~+105℃ | Cable Range: 3.5-7.5mm

*Prices per set, shipping not included

Category: M12 Waterproof Connector

Description
Reviews (0)

LLT M12 Female Front Panel Waterproof Connector

Authorized Certifications

Trusted by leading manufacturers including Signify, Philips Lighting, and uPowerTek for superior M12 connector performance.

M12 Push-Lock Connector – Effortless Connection

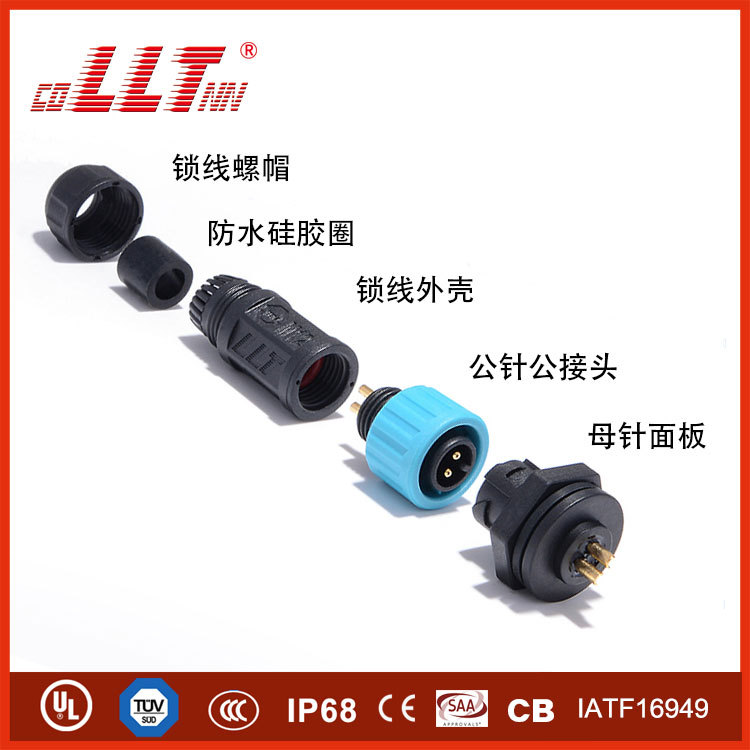

M12 Female Front Panel Connector Exploded View

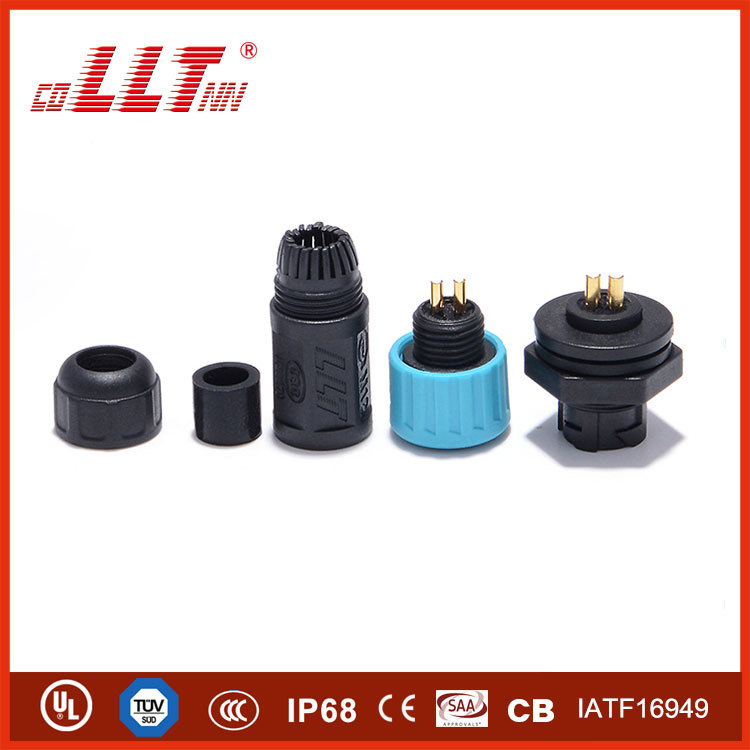

M12 Connector Internal Structure

Precision-engineered push-lock mechanism with spring-loaded pins

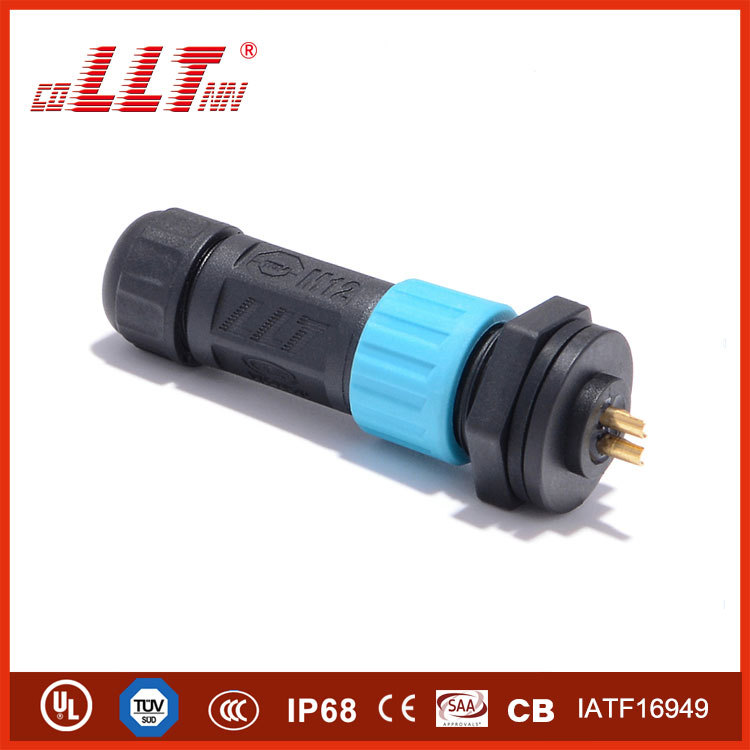

Secure Connection Achieved

Waterproof seal activated with audible “click” confirmation

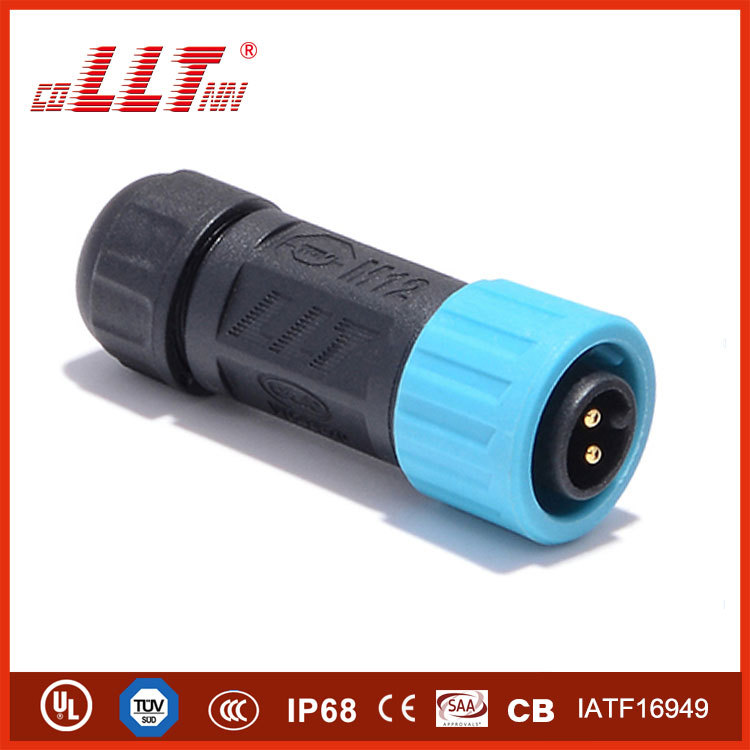

M12 Male Plug

Matching connector with gold-plated contacts

Revolutionary Push-Lock Technology

Simply push. Hear the click. Connection complete.

⚡

90% Faster

Installation Speed

🔊

Audible Click

Connection Confirmed

🔒

Auto-Lock

Secure Hold

M12 Connector Technical Excellence

🔌

Gold-Plated Contacts

24K gold plating ensures optimal M12 connector conductivity and corrosion resistance

💧

IP68 Waterproof

Advanced silicone sealing technology for M12 connector outdoor applications

⚙️

Spring-Lock Mechanism

Multi-iteration design perfects M12 connector insertion feel and reliability

LLT Technology

Leading M12 connector manufacturer since 2007. Trusted by Fortune 500 companies worldwide.

17+

Years Experience

500M+

M12 Connectors Produced

50+

Countries Served
