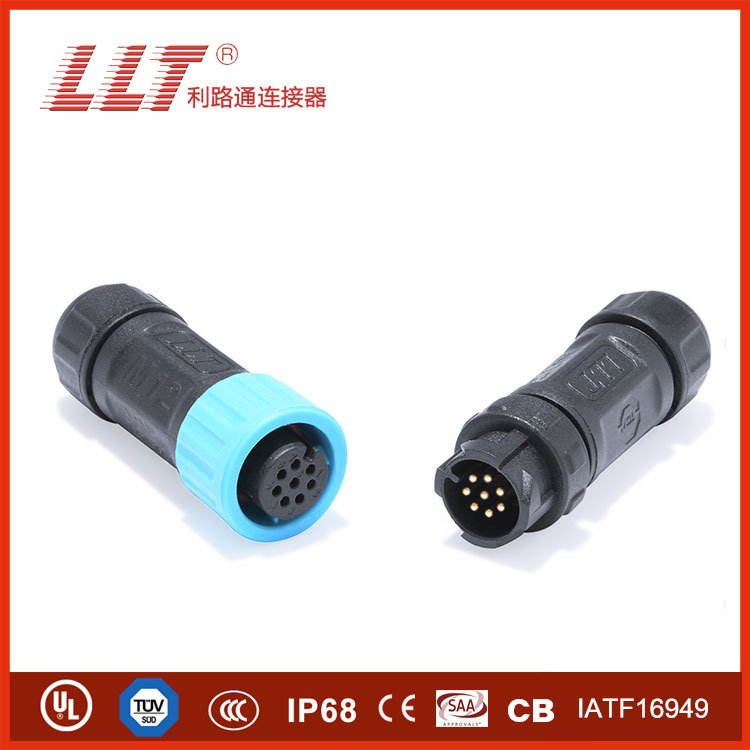

LLT M12 push lock assembly male female waterproof connector

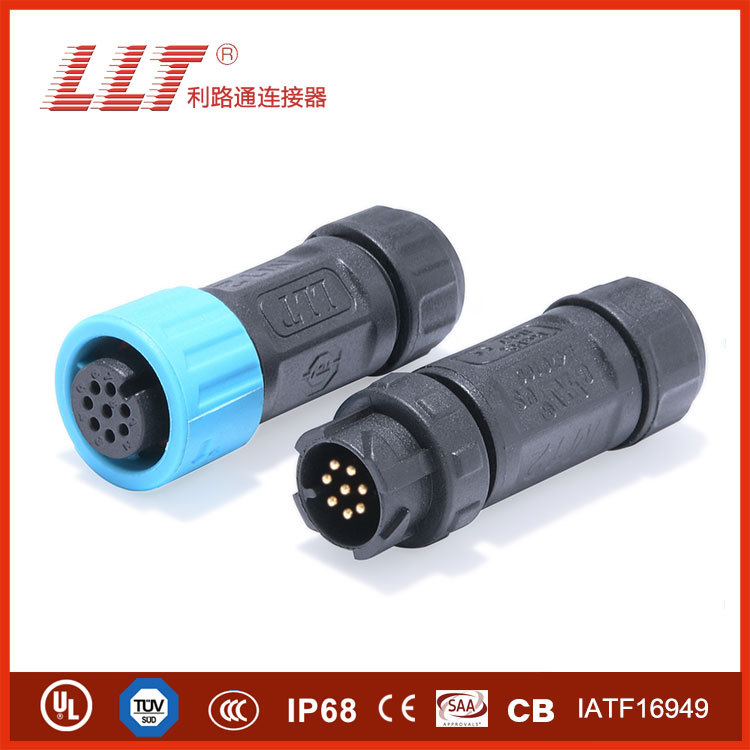

LLT M12 push lock assembly male female waterproof connector - Image 2

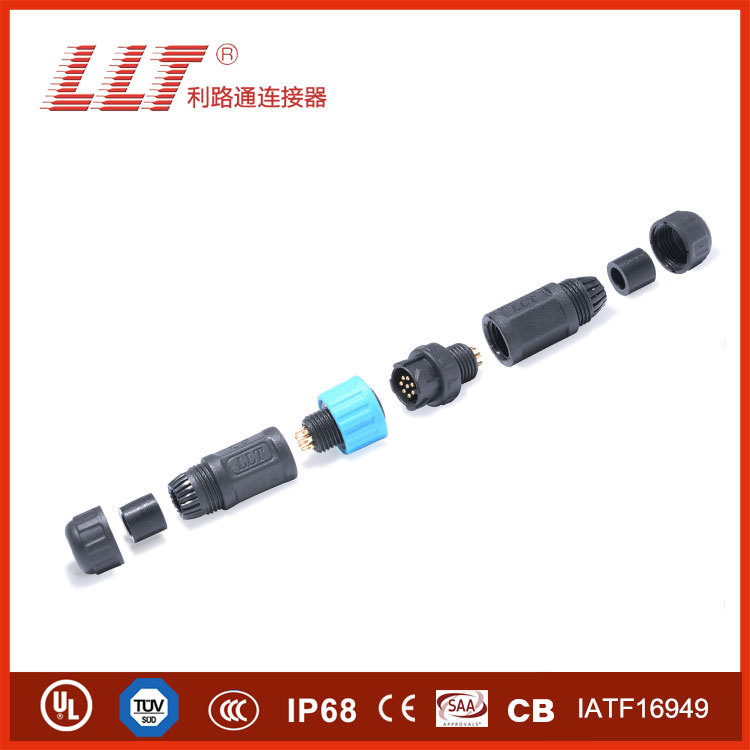

LLT M12 push lock assembly male female waterproof connector - Image 3

LLT M12 push lock assembly male female waterproof connector - Image 4

LLT M12 push lock assembly male female waterproof connector

💰 CLICK TO EMAIL – BULK ORDER DISCOUNTS!

📧 Click above to send email for bulk pricing negotiation

💬 Live Chat (Office Hours: 8AM-10PM GMT+8)

M12 Parametric Table

Cores	Voltage	Current	Wire Gauge
1P	110V	10A	≤1.0mm²
2P	110V	10A	≤1.0mm²
3P	110V	10A	≤0.75mm²
4P	110V	10A	≤0.5mm²
5P	60V	5A	≤0.3mm²
6P	60V	5A	≤0.2mm²
7P	60V	5A	≤0.2mm²
8P	60V	5A	≤0.2mm²
2+2P	110V	10A	≤1.0mm²
2+3P	110V	10A	≤0.75mm²
2+4P	110V	10A	≤0.5mm²

Specifications: IP67 Protection | 3000 Mating Cycles | -40℃~+105℃ | Cable Range: 3.5-7.5mm

*Prices per set, shipping not included

Category: M12 Waterproof Connector

Description
Reviews (0)

LLT M12 Push Lock Waterproof Connector Series

Certified Quality

UL Listed TUV Certified ISO9001 CE Marked

Advanced Push Lock Technology

Patented Push Lock Design

Features spring-loaded push lock mechanism with IP68 waterproof rating. The locking system provides audible click confirmation ensuring secure connection. Compatible with leading grow lighting systems including Signify, Philips Lighting, uPowerTek, and Powerland full spectrum grow lights.

Premium Engineering Showcase

Premium Materials: PA66 nylon housing with high-grade silicone seals. Phosphor bronze contacts with 3µm 24K gold plating ensure low contact resistance and superior thermal performance.

🔬

Precision Engineering: FEA optimized for consistent clamping force

🔊

Click Confirmation: Audible feedback confirms proper engagement

🛡️

Proven Reliability: Validated for landscape lighting applications

Versatile Installation Options

Available in pre-wired cable assemblies and threaded panel mount configurations. Proven performance in landscape lighting applications for over 10 years, including partnerships with leading outdoor lighting manufacturers.

⏱️

Long Life: Rated for 5,000 mating cycles

⚙️

Flexible Design: Multiple pin configurations for diverse applications

🌦️

Weather Resistant: Designed for outdoor and industrial environments

M12 Connector Types Comparison

Standard Threaded

Industrial standard for all environments

Secure Mount
Vibration resistant, stable connection

Cost Effective
Economical for volume production

Wide Application
Automation, robotics, sensors

LLT™ Push Lock RECOMMENDED

Advanced design for enhanced efficiency and reliability

Quick Connect
Tool-free, one-touch connection

Clear Feedback
"Click" audible confirmation

90% Faster Installation
Reduces installation and maintenance costs

Bayonet Lock

Balanced efficiency and cost solution

Quick Lock
Easy operation, secure retention

Waterproof
Suitable for wet/outdoor environments

Global Market
Popular in international markets

LLT Connector · Landscape Lighting Applications

Shenzhen "Bay Area Light" Ferris Wheel

Singapore Gardens by the Bay

Full Spectrum LED Grow Light Systems

Las Vegas Sphere

Application Areas

Industrial Automation

Robotic systems, AGV chassis connections, servo motor encoders

Landscape Lighting

Outdoor LED fixtures, garden lighting, architectural illumination

Grow Lighting

Full spectrum LED grow lights, horticultural power distribution

Automotive

EV charging systems, sensor connections, control units

About LLT Connector

Professional Wire & Cable Equipment Manufacturer

Workforce 1000+ employees

Manufacturing HQ(Shenzhen): 12,000m²
Plant(Dongguan): 150,000m²

Capacity 5M+ units/month

Innovation High-Tech Enterprise
200+ patents

Leading Electrical Equipment & Supplies Provider

As a National High-Tech Enterprise, LLT Connector provides comprehensive electrical connection solutions through 200+ technical patents and vertically integrated manufacturing. Starting as a quality alternative to Amphenol connector products, we have developed innovative solutions including the globally launched L Series Lighting Connector, enhanced Push-lock design, and optimized Bayonet series connectors.

Our products serve landscape lighting (with 50%+ market share in grow lighting connectors), solar energy, and industrial automation applications worldwide. Custom solutions available for EV high-voltage platforms and fast charging waterproof connections.

Waterproof Connector Excellence

Specialized in M12 connector, circular connector, aviation plug, and waterproof plug manufacturing for electrical equipment & supplies industry. Compatible with major brands including Signify, Philips Lighting, uPowerTek, and Powerland.
